Rendovent

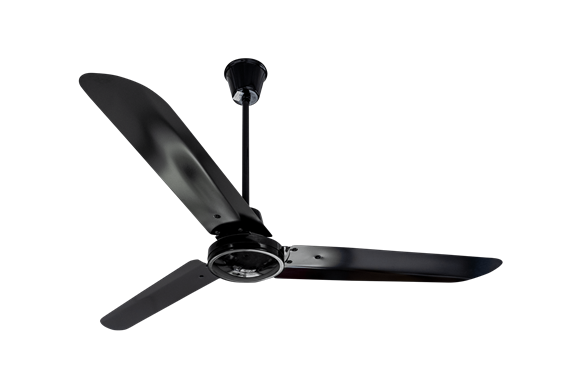

Ceiling fan, 13.000 m3/h
- Energy saving
- Reduces heat loss
- Improves heat distribution in the space
- Increased comfort
- Silent operation
Description
To realise an efficient energy consumption in spaces higher than 5 meters a good recirculation of the heated air by ceiling fans is essential. The Rendovent can be controled by a stepless switch, as extra provided with a temperature sensor. This means that the warmer it gets under ceiling, the faster the fan will rotate. During the summer the Rendovent can contribute to a pleasant movement of air however, when it is really warm this is not a good option as the assembled heat underneath the ceiling is pushed downwards.
Features
- suitable for heights from 3 to 7 mtrs
- high air output
- extra air circulation in the summer
- control by separate 5-step switch or stepless switch, optional with temperature sensor
- colour black
- low weight
- simple to install with one pendant
Technical features
| Model | Ceiling |
|---|---|
| Air volume, unloaded | 15000m³/h |
| Impeller diameter | 1420mm |
| Power consumption | 0.08kW |
| Connection voltage | 230V - 230V |
| Frequency | 50 Hz |
| With thermal overload protection | Yes |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP20 |
| Material | Steel |
| Colour | Black |
| Pendant length | 0mm - 0mm |
| Height | 700mm - 700mm |
| Width | 1420mm |
| Depth | 1400mm |
Images
Accessories
Controls
Service parts
View our service parts for the Rendovent (and earlier models) in the parts shop.
Parts shopThe Rendovent is an industrial ceiling fan which takes care of a better distribution of warm air in the space.
All Winterwarm RDV types
