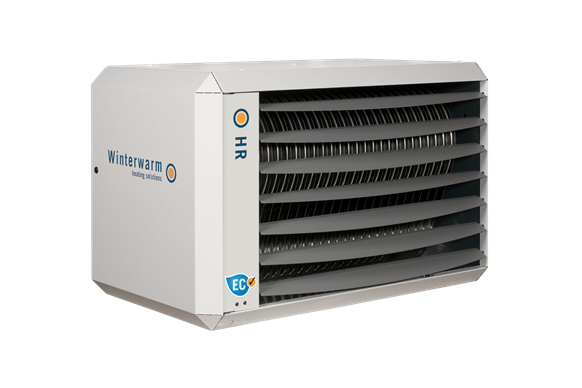

HR 60 EC
High effiency gas-fired warm air heater with EC fan, 60 kW
- Most environmentally-friendly heater
- High efficiency
- Economical and quiet EC fan
- Modulating burner and fan
- 10 years warranty on heat exchanger
Description
The HR 60-EC is a compact condensing air heater with low noise EC Fan. The unit has a capacity of 60 kW and an efficiency of approx. 106%. Both the pre-mix burner and system fan can modulate back to 30%. In combination with the Multitherm thermostat, this ensures an even room temperature.
More options
The HR 60-EC is suitable for natural gas or propane gas.
It is also possible to mount the unit up to an angle of 45 degrees. Together with the louvres, it is then possible to blow warm air vertically.

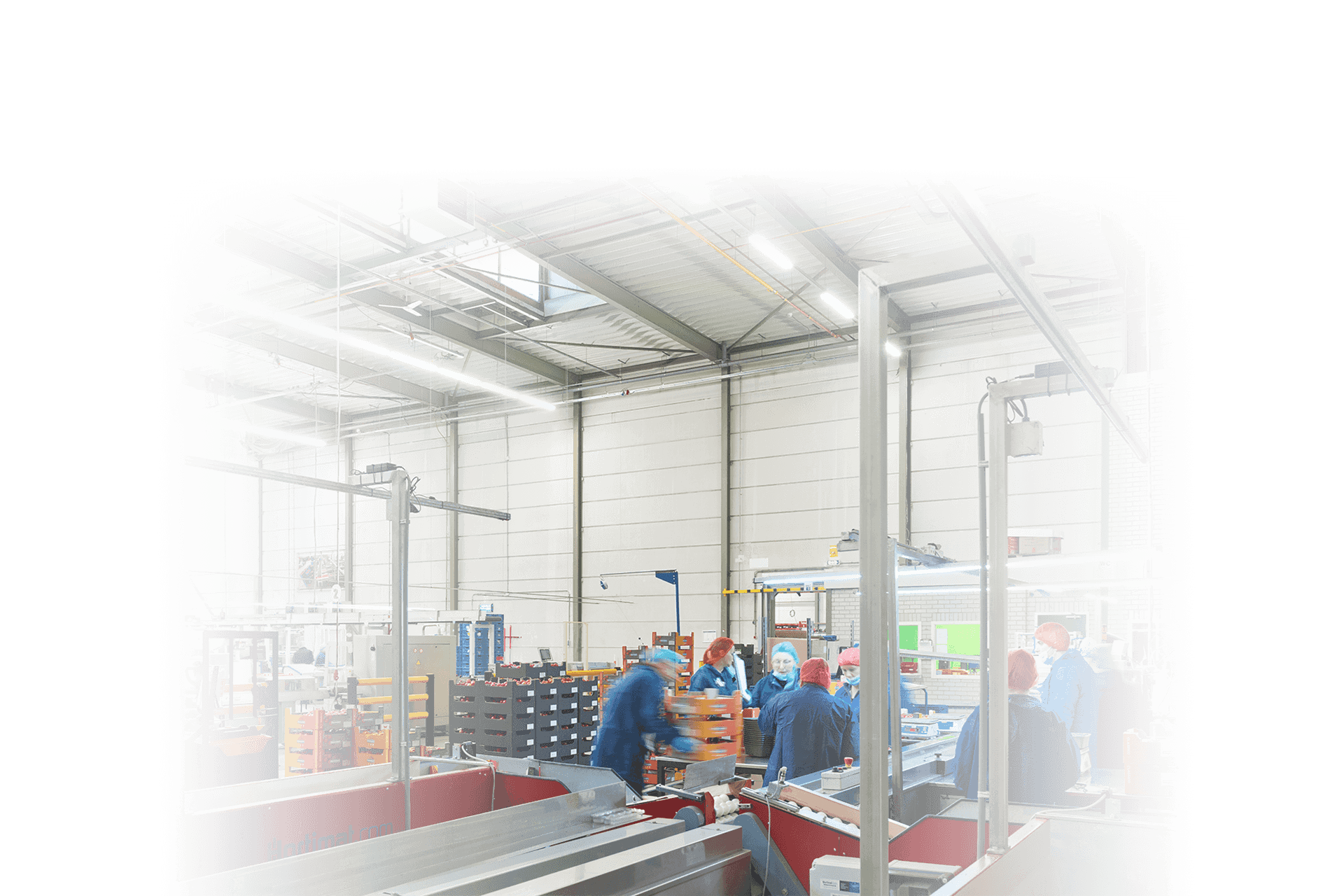

The HR 60 EC is low noise, has an attractive design and ideally suited to installation in shops and any other commercial buildings.
Features
- modulating burner- and fan control for more comfort
- delta-T control optimizes gas consumption
- quiet and efficient EC fan as standard
- low electricity consumption li>
- compact and modern design
- tilt-mounted option - V-model (improved vertical heat distribution)
- suspension on ceiling or wall, by consoles or by threaded bar
- natural gas or propane
- supplied including siphon
- suitable for all kinds of premises
Technical features
| Nominal power | 58kW |
|---|---|
| Nominal load lower value | 60kW |
| Efficiency | 106% |
| Air volume | 4000m³/h - 6700m³/h |
| Max. throw horizontal | 30m |
| Max. throw vertical | 0m |
| Supply voltage | 230V |
| Nominal current | 2.5A |
| Max. electric power input | 500W |
| Max. sound level (at a distance of 4 metres) | 64dB(A) |
| Material heat exchanger | Stainless steel |
| Closed version | Yes |
| Burner controller high/low | No |
| Burner controller, modulating | Yes |
| Control signal on/off | Yes |
| Control signal 0-10 V | No |
| Fan type | Axial |
| Degree of protection (IP) | IP20B |
| Height | 670mm |
| Width | 1065mm |
| Depth | 775mm |
| Weight | 110kg |
| Min. mounting height (horizontal air distribution) | 1.7m |
| Outer pipe diameter combustion air | 80mm |
| Outer pipe diameter condensate | 40mm |
| Seasonal space heating energy efficiency (Ns) | 89.4% |
| Connection, fuel | External thread |
| Nominal diameter fuel | 3/4 inch (20) |
| Gas consumption low-calorific natural gas (G25) | 7.2m³/h |
| Gas consumption propane (G31) | 4.8kg/h |
| Gas consumption high-calorific natural gas (G20) | 6.3m³/h |
