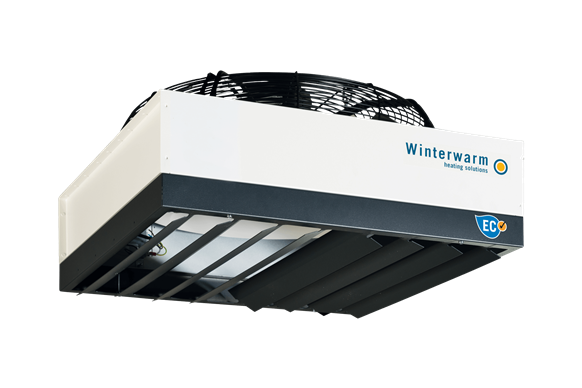

WCU 80 EC
Recirculation unit with EC-fan motor, 7000 m3/h
- Energy saving
- Low electricity consumption
- Increased comfort by stepless control
- Low noise level
- Reduced heat loss
Description

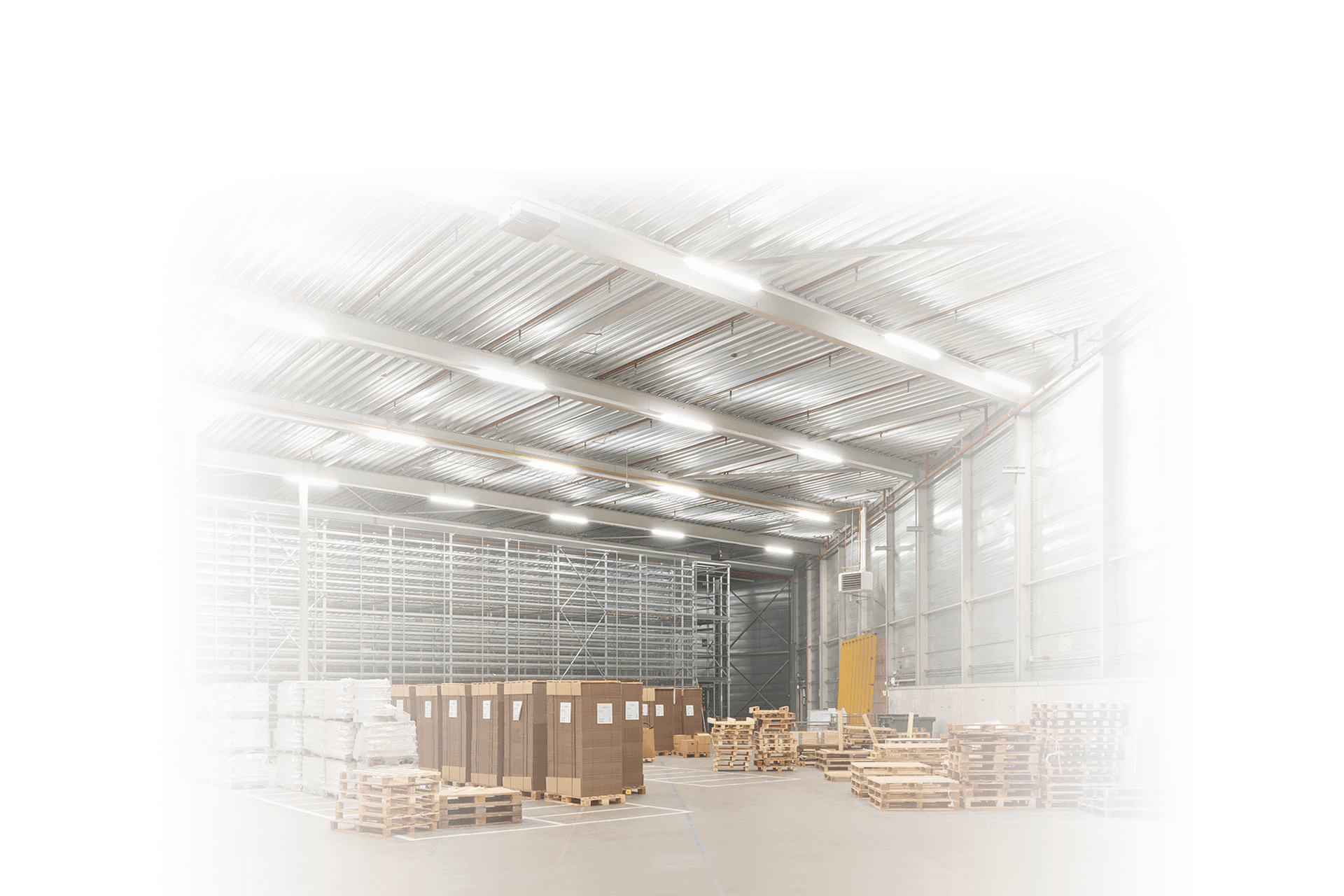

The WCU-EC 80 is a compact destratification unit with a rectangular casing and fan for buildings maximum height of 12 meter. All WCU units have a adjustable grill in order to guide the air flow. In warehouses it is recommended to place these units between the racks in order to have a free flow of air.
Air volume adjustable
All WCU-EC destratification units have adjustable louvres to guide the air in the desired direction. The volume can be controlled stepless by 0-10 Volt controller. The WCU- EC units are low noise.
Features
- suitable for 8 to 12m height
- adjustable louvres
- “Plug and play"
- built-in thermostat 230 V.
- stepless 0-10 V. fan control (optional)
- simple suspension from chains
Technical features
| Model | Ceiling |
|---|---|
| Air volume, unloaded | 7000m³/h |
| Impeller diameter | 500mm |
| Throw vertical | 8 - 12 |
| Power consumption | 0.49kW |
| Connection voltage | 230V - 230V |
| Frequency | 50 Hz |
| With thermal overload protection | No |
| Electrical connection | Terminals |
| Degree of protection (IP) | IP30 |
| Material | Steel |
| Colour | White |
| Pendant length | 0mm - 0mm |
| Height | 600mm - 600mm |
| Width | 600mm |
| Depth | 320mm |
Images
Downloads
Accessories
Aansturingen
Ophangingen
Service parts
View our service parts for the WCU 80 EC (and earlier models) in the parts shop.
Parts shopWinterwarm WCU EC-range
Winterwarm air-circulation units ensure good heat distribution and optimise the use of the heated air with minimal energy consumption and a high level of comfort.
All Winterwarm WCU_EC types
