EH 10
Electric warm air heater, 10 kW
- All electric
- Various heating outputs
- Effective heating of the room
- Modulating fan
- Easy to install
Description

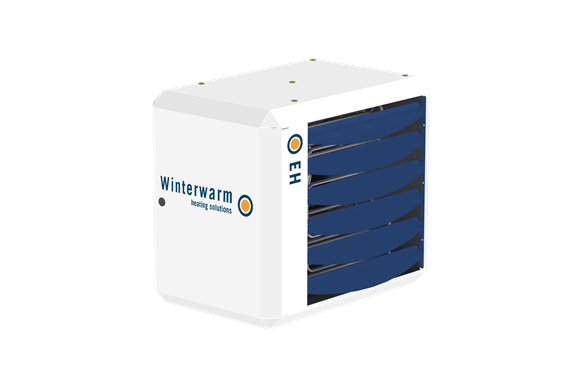

The EH 10 is an electrical heater with a capacity of 10 kW. It can be used perfectly to heat a small or medium size commercial building. The unit can be mounted on the wall by means of wall brackets or by using tie rods when mounting it a vertically to a ceiling. Also there is option to use a design bracket which makes it possible to adjust the unit in the desired position.
The fan is modulating which ensures a maximum of comfort. We recommend to control the EH by a Multitherm thermostat.
Features
- compact and light unit
- low maintenance
- suspension on brackets or threaded bar
- tiltable up to 45°
- vertical louvres available
- delta T-control
- various control options
- no peak load
- plug-and-play
Technical features
| Power | 9900W |
|---|---|
| Connection voltage | 3 x 400 V |
| Fan type | Axial |
| Motor power | 230W |
| Air volume | 0m³/h - 3100m³/h |
| Width | 570mm |
| Height | 490mm |
| Depth | 515mm |
Images
Accessories
Aansturingen
Ophangingen
Overig
Service parts
View our service parts for the EH 10 (and earlier models) in the parts shop.
Parts shopWinterwarm EH-range
The Winterwarm EH is an electric warm-air heater for applications when gas is unavailable.
