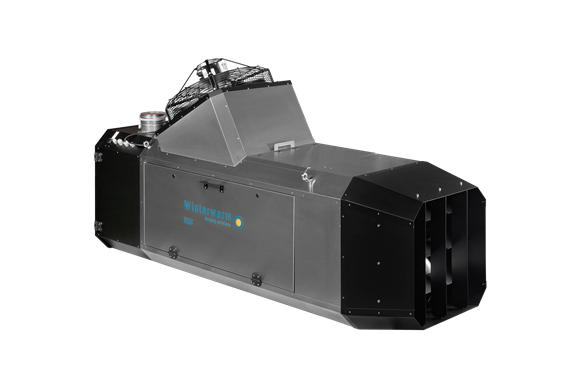

DXC 80
Indirect gas-fired heater, 80 kW
- Sealed combustion system
- No CO2 introduced into the poultry house
- Up to 25% energy savings
- Reliable design
- Reduced fire risk
Description
The DXC 80 is the middle capacity heater. With 4 x DXC 80, a poultry house of approximately 3,000 m2 can be efficiently heated. It has a closed combustion chamber which ensures a safe operation.
For a good circulation of the air and low temperature differences in the farm, we recommend also using DXF fans.
Features
- stainless steel casing
- robust tubular heatexchanger
- clear and simple readable display for service
- introduction of outside air by flexible SS-tube
- on/off control as standard
- modulating control possible
- 0-10 V. analogue input
- easy to clean
- installation on mobile stand or on chains
- natural gas or propane
- CE approved
Technical features
| Nominal power | 75.9kW |
|---|---|
| Efficiency | 91.5% |
| Air volume | 0m³/h - 8000m³/h |
| Max. throw horizontal | 45m |
| Supply voltage | 230V |
| Nominal current | 3.9A |
| Max. electric power input | 900W |
| Max. sound level (at a distance of 4 metres) | 70dB(A) |
| Material heat exchanger | Stainless steel |
| Closed version | Yes |
| Burner controller high/low | No |
| Modulating burner control | Yes |
| Control signal on/off | Yes |
| Control signal 0-10 V | No |
| Fan type | Axial |
| Degree of protection (IP) | IPX4B |
| Height | 1080mm |
| Width | 650mm |
| Depth | 2100mm |
| Weight | 150kg |
| Outer pipe diameter combustion air | 130mm |
| Fuel connection | External thread |
| Nominal diameter fuel | 3/4 inch (20) |
| Gas consumption low-calorific natural gas (G25) | 9.9m³/h |
| Gas consumption propane (G31) | 6.6kg/h |
Images
Accessories
Aansturingen
Ophangingen
Rookgasafvoermateriaal
Overig
Service parts
View our service parts for the DXC 80 (and earlier models) in the parts shop.
Parts shopDXC Heaters
The Winterwarm DXC is a gas-fired warm air heater with room-sealed fresh air and flue exhaust system, specifically designed for poultry houses.
All Winterwarm DXC types
