QSE 16 + 40
Hybride air heater all electric, 56 kW
- Quick heating by booster
- Sustainable heating solution
- Can be combined with solar panels
- Heats and cools
- No CO2 emissions
Description

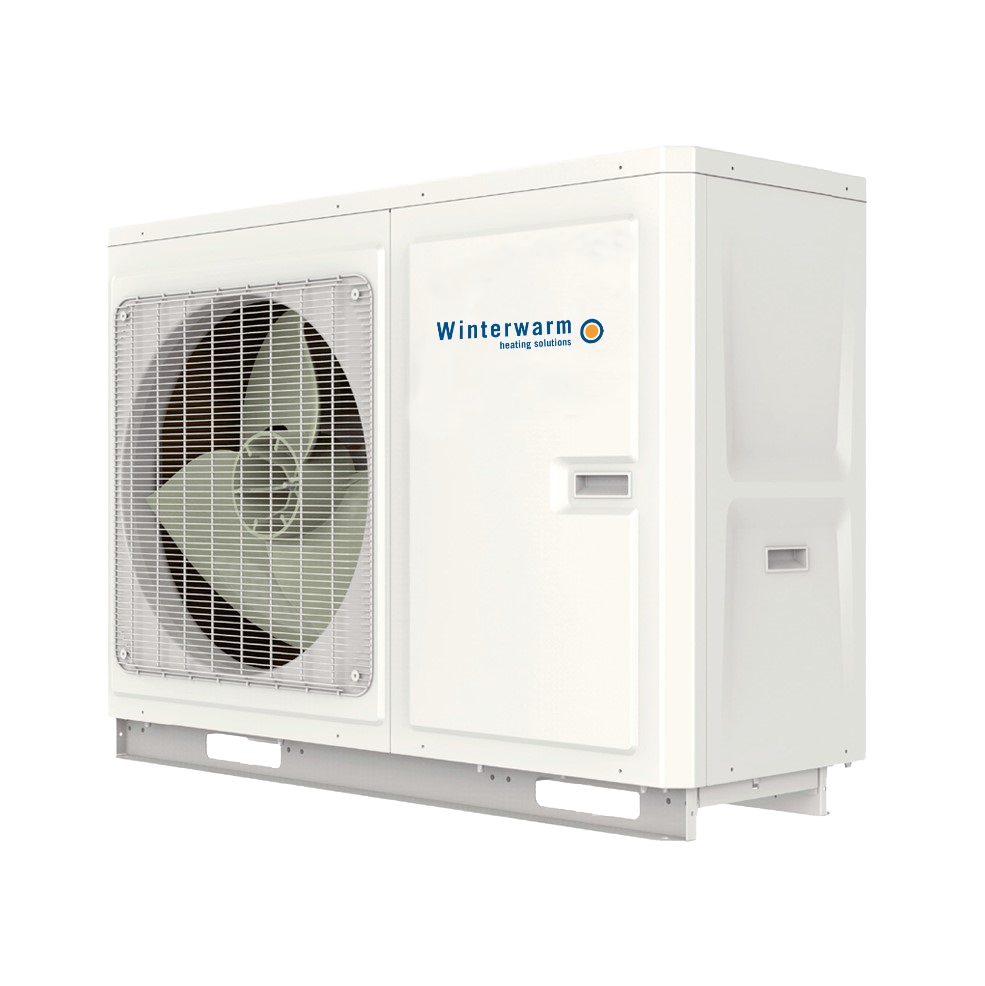

The hybrid air heater QSE 16+40 consists of a heat pump of 16 kW and an inside unit with water coil, an axial fan and an electrical booster of 40 kW. This model, with a relatively large booster, is very suitable for areas were sudden heat loss from the room has to be compensated quickly (garages, showrooms, warehouses with loading area).
The water coil with modulating EC fan are the heat release system for the heat pump while the booster is activated when the heat pump does not supply enough heat to reach the programmed room temperature.
At the front of the inside unit a discharge grill with adjustable louvres takes care of an even air distribution in the room. Preferably, complemented with destratification fans. During the summer the QSE can also provide cooling in order to realize a comfortable working place the whole year through.
Features
- all-electric
- heating capacity 56kW (16kW heat pump + 40kW booster)
- cooling (at water temperature min. >7°C)
- efficient and silent EC fan motor
- 0% NOx emission
- suspension on wall brackets or threaded bar
- simple installation
Technical features
| Total heating capacity | 55.3kW |
|---|---|
| Heating capacity electrical heating | 39.6kW |
| Heat emission heat pump heat exchanger at 20 °C 35/30 | 15.7kW |
| Cooling capacity heat pump heat exchanger at 27 °C 12/17 | 15.4kW |
| Air volume | 1206m³/h - 6700m³/h |
| Max. throw horizontal | 25m |
| Supporting protocol for Modbus | Yes |
| Connection voltage | 400V - 400V |
| Nominal current | 60A |
| Supplementary electricity consumption in standby-mode (Psb) | 5W |
| Nominal diameter connections heat pump | 1 inch (25) |
| Min. mounting height (horizontal air distribution) | 2.7m |
| Sound pressure level at height of 5 metres | 35dB(A) - 62dB(A) |
| Water content | 6.6l |
| Weight including filling | 114kg |
Images
Accessories
Aansturingen
Ophangingen
Overig
HPX 16
Service parts
View our service parts for the QSE 16 + 40 (and earlier models) in the parts shop.
Parts shopThe Qwikshift QSE is an all-electric hybrid heater which combines a heat pump with an innovative booster and smart control.
