QSG 6 + 10
Hybrid air heater with booster, 16 kW
- Quick heating by booster
- Up to 60% lower energy consumption
- Hydrogen ready
- Heats and cools
- Up to 70% reduction of CO2 emissions
Description

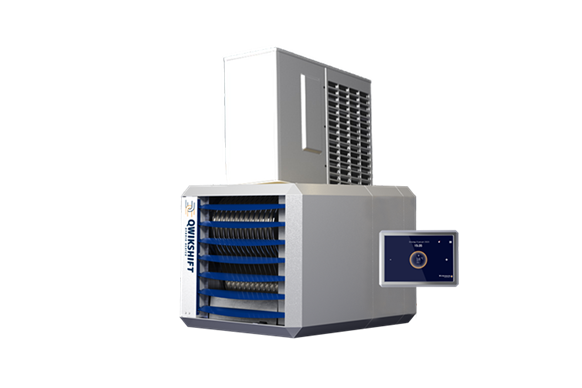

The hybrid air heater QSG 6+10 consists of a heat pump of 6 kW and an inside unit with water coil, an axial fan and a gas fired booster of 10 kW. The water coil with modulating EC fan are the heat release system for the heat pump. The booster is a condensing gas fired air heater with high efficiency which is activated when the heat pump does not supply enough heat to reach the set room temperature.
At the front of the heater a discharge grill with adjustable louvres takes care of an even air distribution in the room. Preferably, complemented with destratification fans.
During the summer the QSG can be set in a comfortable cooling mode.
Efficient energy management
The Smart Controller controls both the heat pump and the indoor unit based on the measured room temperature and determines when the booster should jump in. By choosing, this can be done partly on the basis of the user's programmed gas- and electricity rates. The QSG can also be connected to a building management system so that the user can monitor the performance of the system and improve it even more.
Features
- with high efficiency gasbooster
- heating capacity 16kW (6 kW heat pump + 10 kW booster)
- cooling (min. water temperature >7°C)
- efficient and silent EC fan motor
- modulation of discharge air
- low NOx emission
- suspension on wall brackets or threaded bar
- simple installation
Technical features
| Total heating capacity | 18kW |
|---|---|
| Heating power gas heating | 12kW |
| Heat emission heat pump heat exchanger at 20 °C 35/30 | 6kW |
| Cooling capacity heat pump heat exchanger at 27 °C 12/17 | 6.5kW |
| Gas consumption high-calorific natural gas (G20) | 1.3m³/h |
| Air volume | 324m³/h - 1800m³/h |
| Max. throw horizontal | 15m |
| Modulating burner control | Yes |
| Supporting protocol for Modbus | Yes |
| Connection voltage | 230V - 230V |
| Nominal current | 1.5A |
| Supplementary electricity consumption in standby-mode (Psb) | 7W |
| Fuel connection | External thread |
| Connection heat pump | External thread |
| Nominal diameter connections heat pump | 3/4 inch (20) |
| Min. mounting height (horizontal air distribution) | 2.7m |
| Sound pressure level at height of 5 metres | 35dB(A) - 54dB(A) |
| Water content | 2l |
| Weight including filling | 57kg |
| Gas consumption propane (G31) | 1kg/h |
| Gas consumption low-calorific natural gas (G25) | 1.5m³/h |
