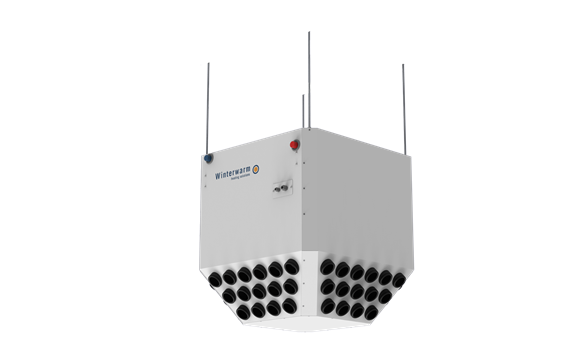

JET 220 S
Air heater, 14 kW

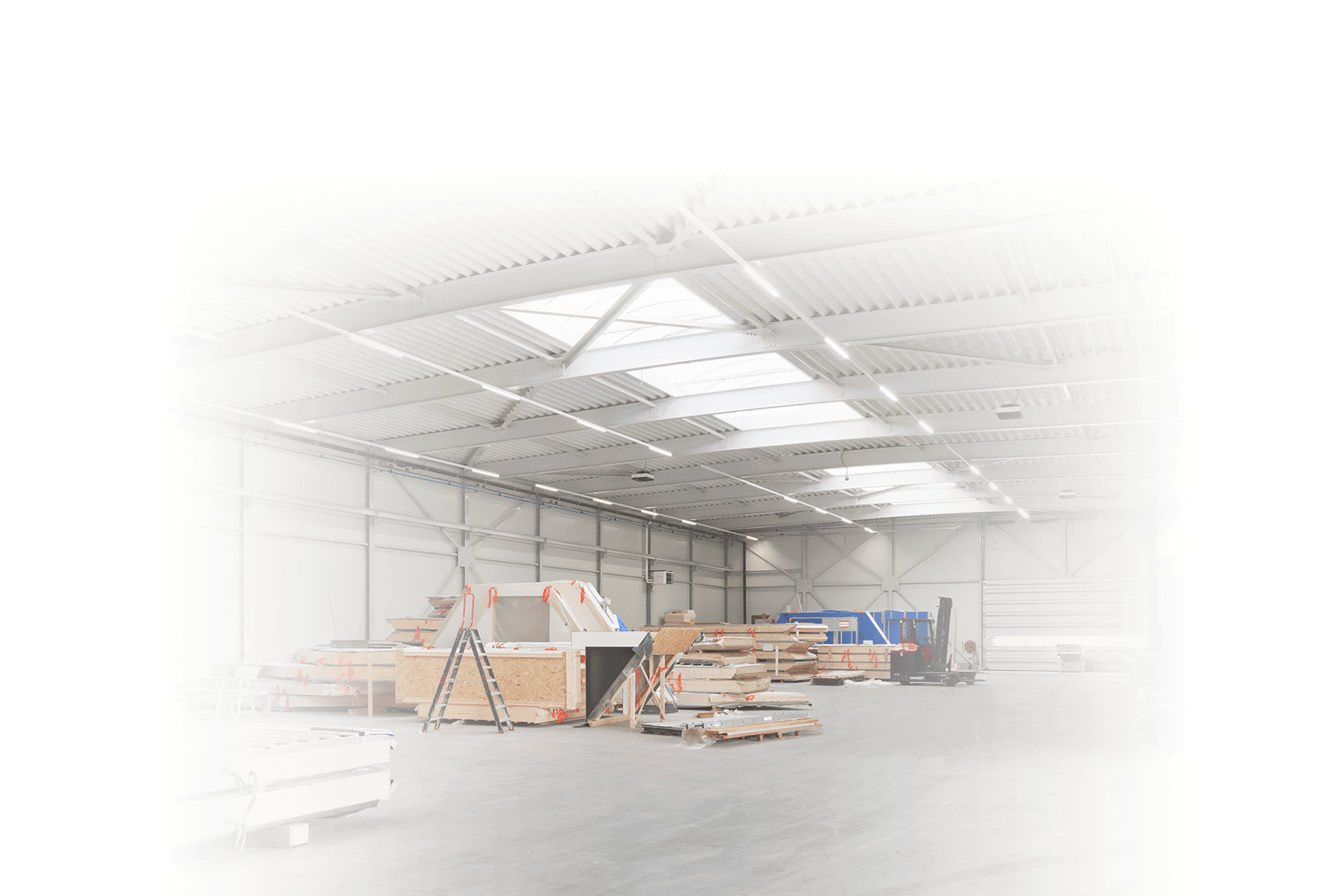

- Applicable in high areas with 5 to 15m height
- Sustainable heating solution
- Simple control 0-10V or on/off signal
- Conical nozzles with induction of air
- Energy saving heating solution
Description
The Winterwarm JET 220S is an air heater with a capacity of 14 kW at a water temperature of 35°C/30°C. Higher water temperatures (f.i. with district heating) provide a higher heat output.
Attention: when the temperature of the discharged air gets higher, the throw is reduced!
The adjustable nozzles have an inducing air discharge pattern with a large coverage of the area and an optimal warmth distribution. For this reason no extra distribution fans are required anymore.
Features
- Applicable in high areas with 5 to 15m height
- Heating with low water temperatures
- No extra recirculation fans needed
- Conical nozzles with induction of air
- Control by means of a 0-10V speed controller of any other on/off signal
- Stepples control of air volume between 40% and 100%
- Reduces heat loss through the roof
Technical features
| Material heat exchanger | Aluminium/copper |
|---|---|
| Heat emission | 0kW - 14kW |
| Fan type | Axial |
| Suitable for wall mounting | No |
| Suitable for in-roof mounting | Yes |
| Suitable for floor mounting | No |
| With suspension | No |
| Air volume | 0m³/h - 4200m³/h |
| Max. throw horizontal | 0m |
| Max. throw vertical | 12m |
| dT heating air | 15K - 30K |
| Connection voltage | 230V - 230V |
| Number of phases | 1 |
| Nominal current | 4.2A |
| Max. electric power input | 840W |
| Sound pressure level at height of 5 metres | 53dB(A) - 69dB(A) |
| Adjustable induction in exhaust air | No |
| Adjustable fins on exhaust side | Yes |
| Height | 720mm |
| Width | 730mm |
| Depth | 695mm |
| Free-exhausting | Yes |
| Connection | External thread conical BSPT-R (ISO 7-1 / EN 10226-1) |
| Nominal diameter | 1 inch (25) |
| Water-side resistance at dT 20 °C | 11kPa |
| Max. operating pressure | 500kPa |
| Water content | 3.9l |
| Weight including filling | 58kg |
