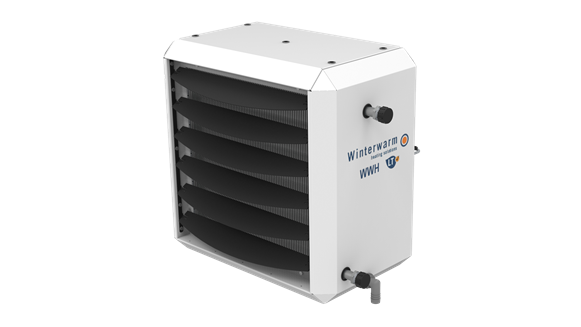

WWH 110 LT
LPHW warm air heater for low water temperatures, 10 kW
- Optimal heat generation at low temperatures
- High comfort
- Stepless control
- Low electricity consumption
- Cooling option using heat pump
Description
The WWH 110 LT is a compact water heater with a heating capacity of 8.3 kW at a water temperature of 45°/35°. In cooling mode the capacity is 6.6 kW at a water temperature of 7°/12°C.
The EC fan technology saves approx. 25% of the electric consumption and is low noise. A prefect sustainable solution in many buildings.
Features
- EC fan as standard
- low noise level
- control with stepless 0-10 V. speed controller or on/off
- suitable for all water temperatures
- heat output 8.3 to 23.8 kW depending on flow/return water temperature
- cooling capacity between 6.6 kW to 3.4 kW depending on flow/return water temperature
- 4-way or 6-way down flow plenum for built-in prefabricated ceilings (no cooling possible)
Technical features
| Heat emission | 0kW - 23.8kW |
|---|---|
| Air volume | 0m³/h - 1850m³/h |
| Max. throw horizontal | 14m |
| Max. throw vertical | 5m |
| Connection voltage | 230V - 230V |
| Number of phases | 1 |
| Nominal current | 1.1A |
| Max. electric power input | 118W |
| Adjustable fins on exhaust side | Yes |
| Material heat exchanger | Aluminium/copper |
| Fan type | Axial |
| EC ventilator as standard | Yes |
| Sound pressure level at height of 5 metres | 0dB(A) - 54dB(A) |
| Height | 505mm |
| Width | 505mm |
| Depth | 380mm |
| Nominal diameter | 3/4 inch (20) |
| Water-side resistance at dT 20 °C | 4kPa |
| Max. operating pressure | 500kPa |
| Water content | 2l |
| Weight including filling | 22kg |
| Heat emission 50/40 | 10.38kW |
| Heat emission 45/35 | 8.3kW |
| Cooling capacity 7/12 | 6.6kW |
| Height | 517mm |
| Width | 562mm |
| Depth | 549mm |
